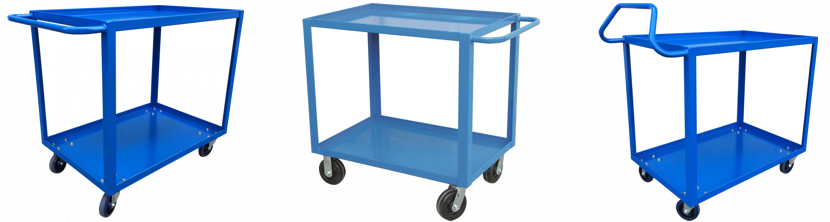

Service Carts

Details:

• Heavy duty all-welded construction
• 14 ga. steel trays with 1-1/2" lip up
• 25-7/8" clearance between shelves
• Two swivel and two rigid casters
• 1" dia. tube push handle at top shelf on swivel end
• Durable blue powder coat finish

Optional Features:

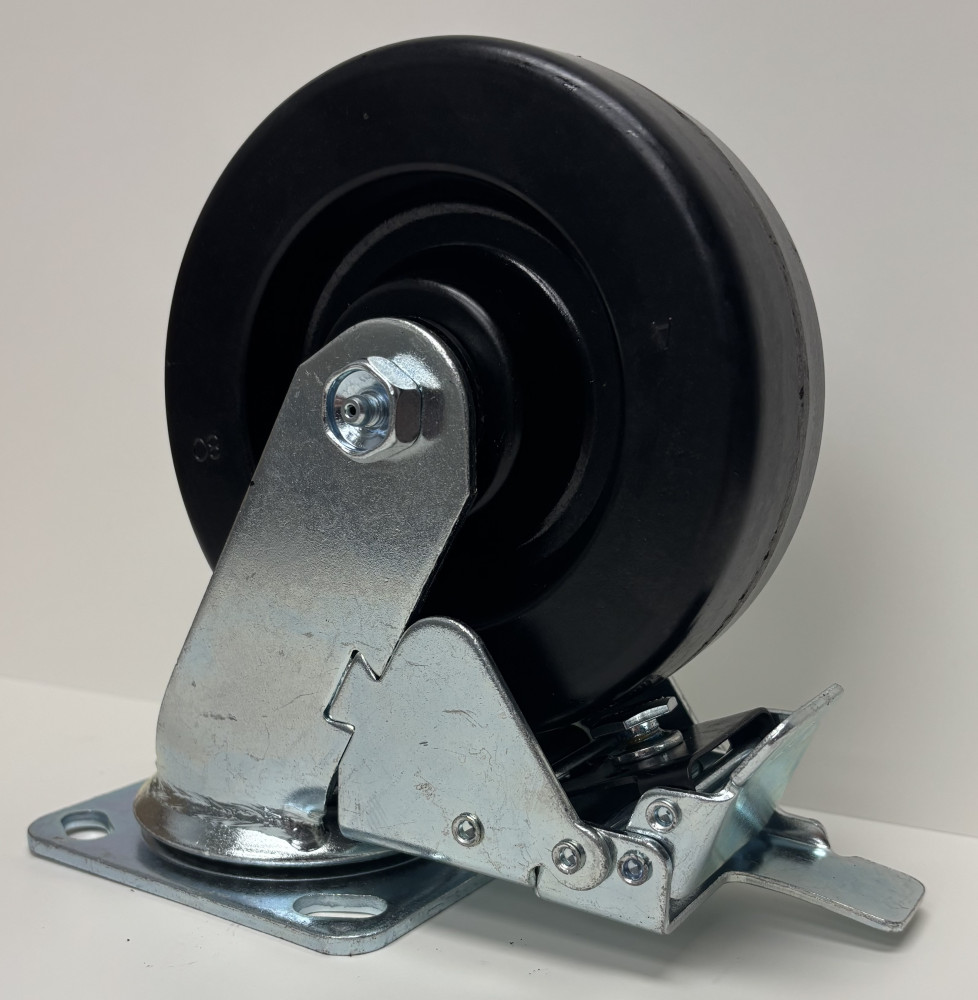

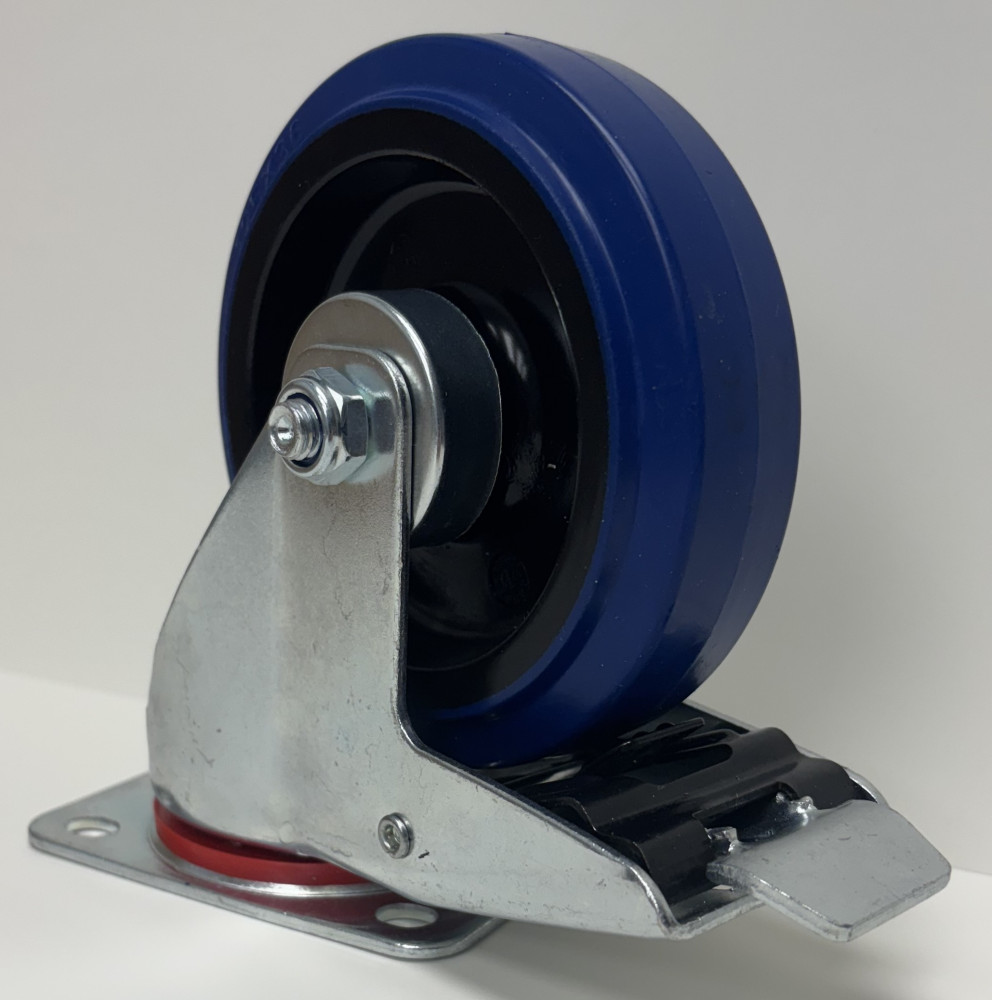

• Locking swivel casters
• Shelves lip down
• Corner Bumper – can be quoted on request
• Other custom sizes can be quoted on request

Two Shelf Service Cart

• Standard sizes range from 16x30 to 30x60
• 1-1/2" x 1-1/2" x 1/8" angle corner posts
• 1,000 to 1,500 lb. capacity

Part No.	Shelf Size	Overall Height (in.)	Weight (lbs.)	Capacity (lbs.)	Caster Size	Caster Type	Shelf Clearance	Shipping Size (in.) L x W x H
30x60SC2-5RSX	30x60	35	118	1000	5 x 1-1/4	Elastic Rubber	25-7/8	66 x 30 x 35
24x48SC2-5RSX	24x48	35	84	1000	5 x 1-1/4	Elastic Rubber	25-7/8	54 x 24 x 35
24x42SC2-5RSX	24x42	35	80	1000	5 x 1-1/4	Elastic Rubber	25-7/8	48 x 24 x 35
24x36SC2-5RSX	24x36	35	75	1000	5 x 1-1/4	Elastic Rubber	25-7/8	42 x 24 x 35
20x43SC2-5RSX	20x43	35	70	1000	5 x 1-1/4	Elastic Rubber	25-7/8	49 x 20 x 35
20x36SC2-5RSX	20x36	35	64	1000	5 x 1-1/4	Elastic Rubber	25-7/8	42 x 20 x 35
18x36SC2-5RSX	18x36	35	60	1000	5 x 1-1/4	Elastic Rubber	25-7/8	42 x 18 x 35
18x30SC2-5RSX	18x30	35	52	1000	5 x 1-1/4	Elastic Rubber	25-7/8	36 x 18 x 35
18x24SC2-5RSX	18x24	35	48	1000	5 x 1-1/4	Elastic Rubber	25-7/8	36 x 18 x 35
16x30SC2-5RSX	16x30	35	51	1000	5 x 1-1/4	Elastic Rubber	25-7/8	36 x 16 x 35
30x60SC2-8PN	30x60	39	133	1200	8 x 2-1/2	Pneumatic	25-7/8	66 x 30 x 39
24x48SC2-8PN	24x48	39	101	1200	8 x 2-1/2	Pneumatic	25-7/8	54 x 24 x 39
24x42SC2-8PN	24x42	39	94	1200	8 x 2-1/2	Pneumatic	25-7/8	48 x 24 x 39
24x36SC2-8PN	24x36	39	88	1200	8 x 2-1/2	Pneumatic	25-7/8	42 x 24 x 39
24x36SC2-8FF	24x36	39	88	1000	8	Flat Free	25-7/8	42 x 24 x 39
20x43SC2-8PN	20x43	39	87	1200	8 x 2-1/2	Pneumatic	25-7/8	49 x 20 x 39
20x36SC2-8PN	20x36	39	81	1200	8 x 2-1/2	Pneumatic	25-7/8	42 x 20 x 39
30x60SC2-10PN	30x60	42	137	1500	10 x 3-1/2	Pneumatic	25-7/8	66 x 30 x 42
24x48SC2-10PN	24x48	42	105	1500	10 x 3-1/2	Pneumatic	25-7/8	54 x 24 x 42
24x42SC2-10PN	24x42	42	98	1500	10 x 3-1/2	Pneumatic	25-7/8	48 x 24 x 42
24x36SC2-10PN	24x36	42	92	1500	10 x 3-1/2	Pneumatic	25-7/8	42 x 24 x 42

Extra Heavy Duty Two Shelf Service Carts

• Standard sizes include 24x36, 24x48, 30x60
• 2" x 2" x 3/16" angle corner posts
• 2,000 lb. capacity

Part No.	Shelf Size	Overall Height (in.)	Weight (lbs.)	Capacity (lbs.)	Caster Size	Caster Type	Shelf Clearance	Shipping Size (in.) L x W x H
24x36SCHD2-6CIC	24x36	37	101	2000	6 x 2	Crown Cast Iron	25-7/8	42 x 24 x 37
24x36SCHD2-6PH	24x36	37	96	2000	6 x 2	Phenolic	25-7/8	42 x 24 x 37
24x48SCHD2-6CIC	24x48	37	115	2000	6 x 2	Crown Cast Iron	25-7/8	54 x 24 x 37
24x48SCHD2-6PH	24x48	37	110	2000	6 x 2	Phenolic	25-7/8	54 x 24 x 37
30x60SCHD2-6CIC	30x60	37	131	2000	6 x 2	Crown Cast Iron	25-7/8	66 x 30 x 37
30x60SCHD2-6PH	30x60	37	126	2000	6 x 2	Phenolic	25-7/8	66 x 30 x 37

Ergo Two Shelf Service Carts

• Standard sizes include 18x30, 24x36
• 1-1/2" x 1-1/2" x 1/8" angle corner posts
• 1,500 lb. capacity

Part No.	Shelf Size	Overall Height (in.)	Weight (lbs.)	Capacity (lbs.)	Caster Size	Caster Type	Shelf Clearance	Shipping Size (in.) L x W x H
18x30SC2-5RSX-ERGO	18x30	35	52	1000	5 x 1-1/4	Elastic Rubber	25-7/8	36 x 18 x 42
24x36SC2-5RSX-ERGO	24x36	35	75	1000	5 x 1-1/4	Elastic Rubber	25-7/8	42 x 24 x 42
24x42SC2-5RSX-ERGO	24x42	35	80	1000	5 x 1-1/4	Elastic Rubber	25-7/8	48 x 24 x 42

Parts:

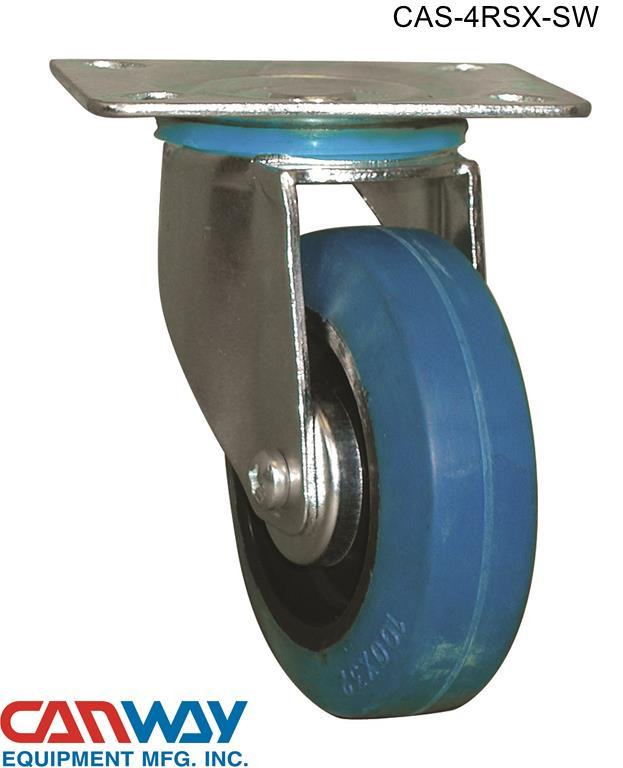

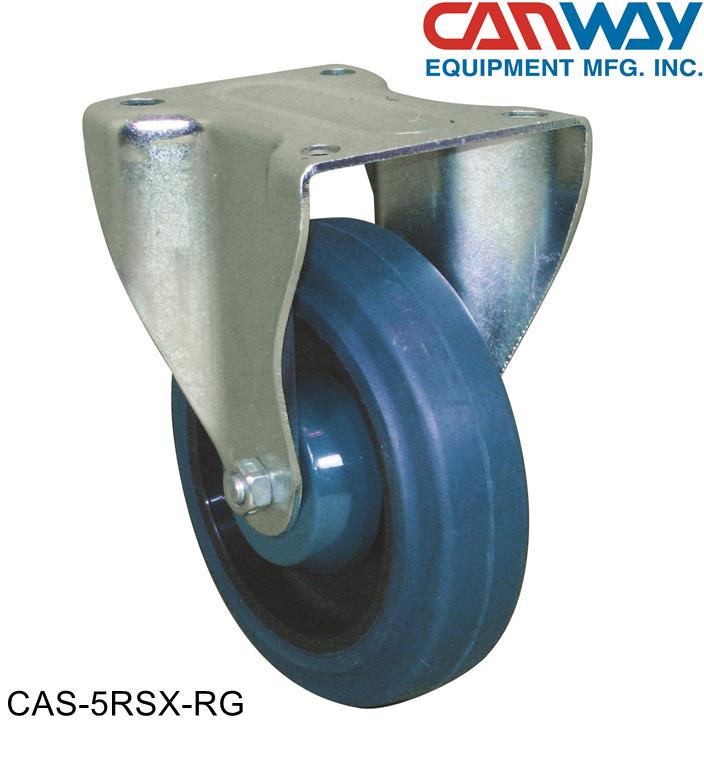

CAS-5RSX-RG	CAS-5RSX-SW	CAS-5RSX-SW-TLB

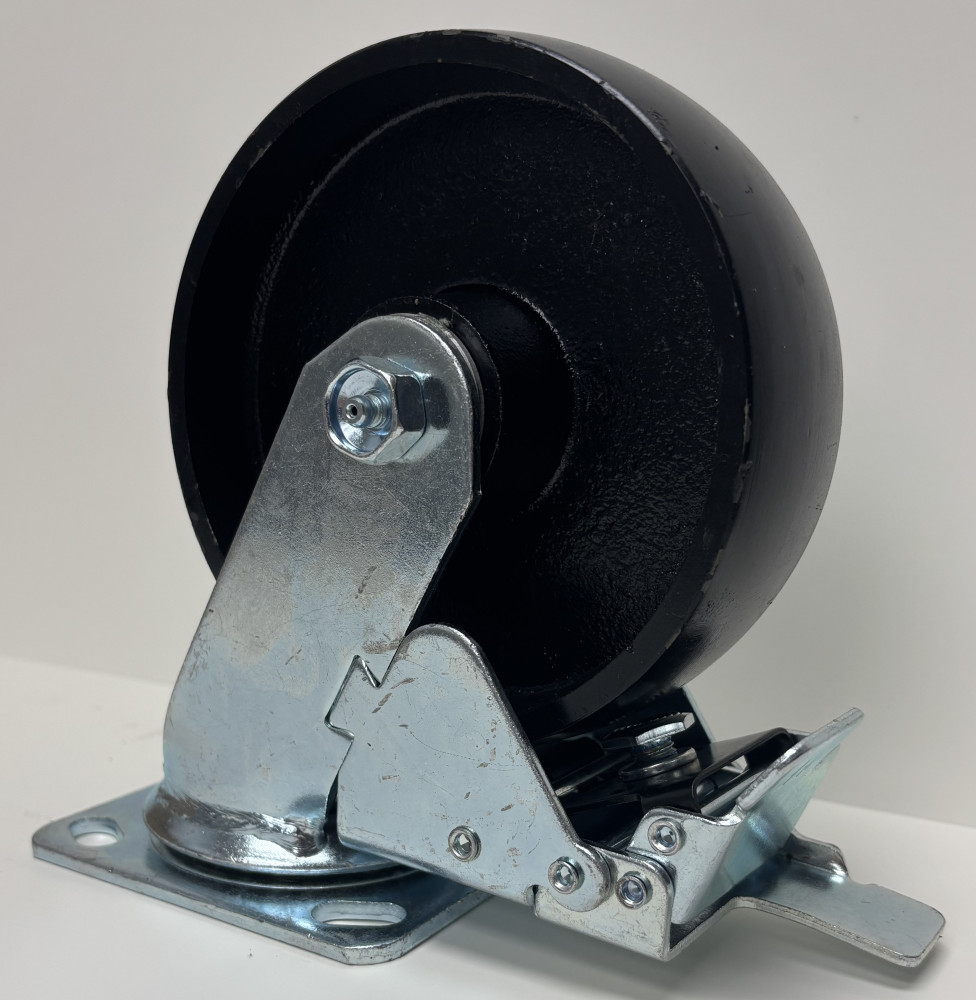

CAS-6CIC-RG	CAS-6CIC-SW	CAS-6CIC-SW-TLB

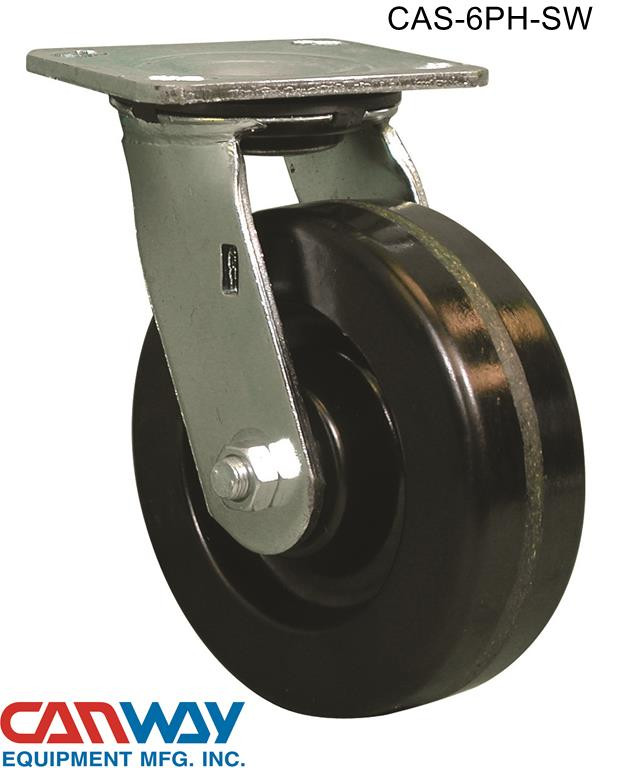

CAS-6PH-RG	CAS-6PH-SW	CAS-6PH-SW-TLB

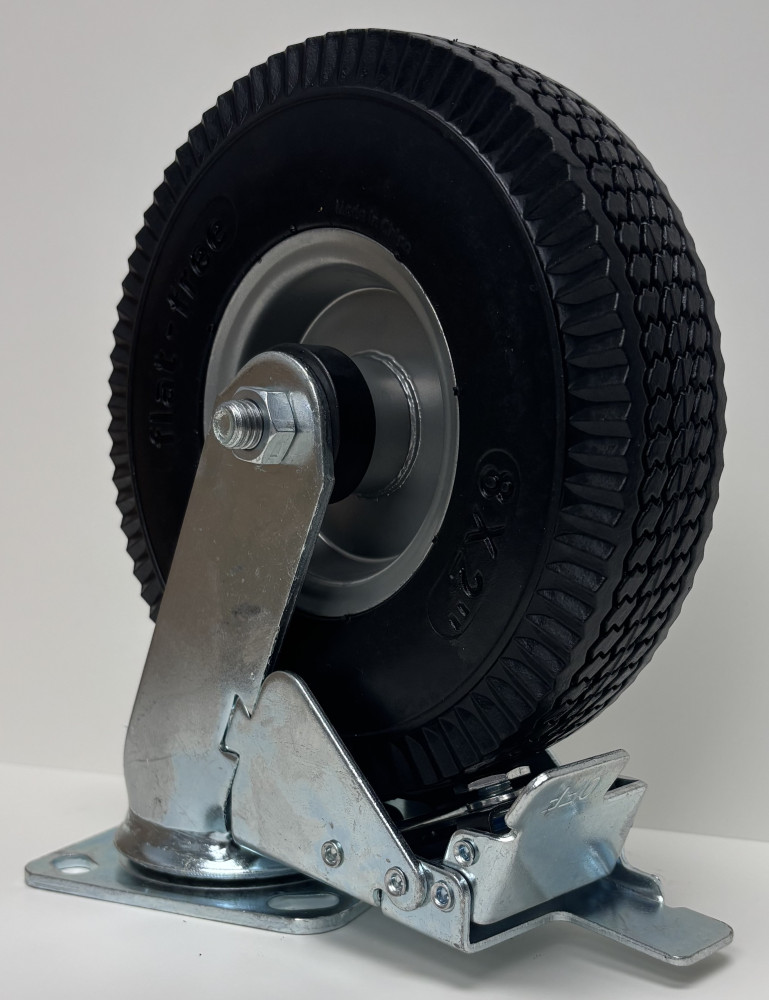

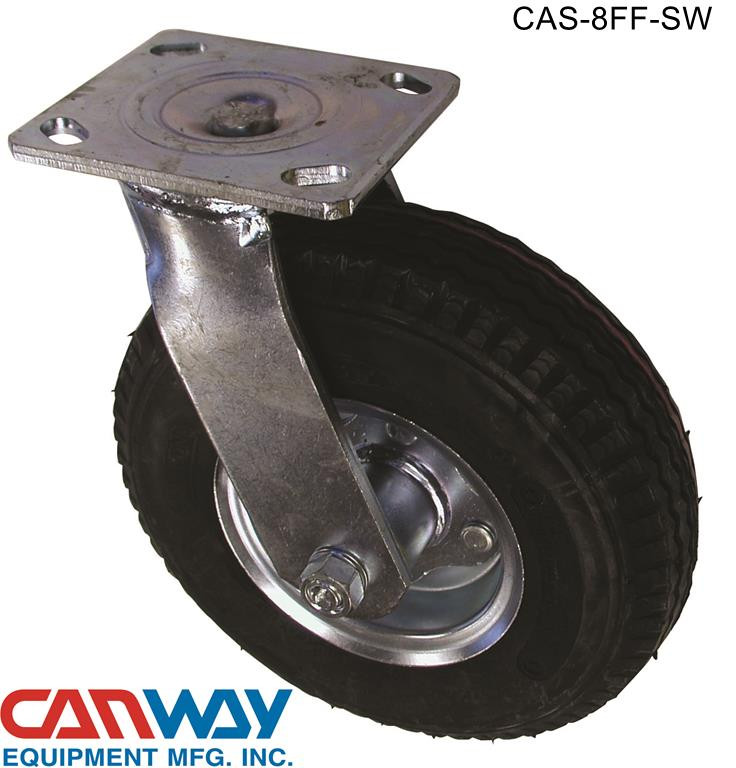

CAS-8FF-RG	CAS-8FF-SW	CAS-8FF-SW-TLB

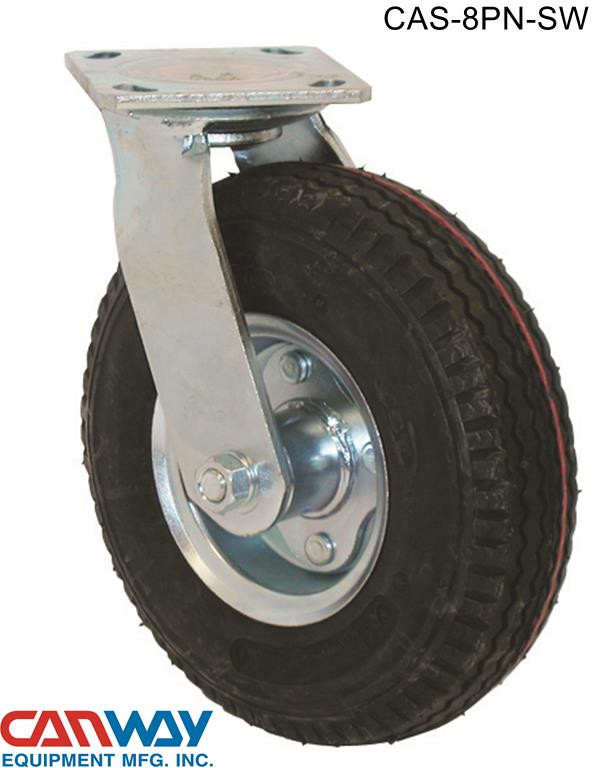

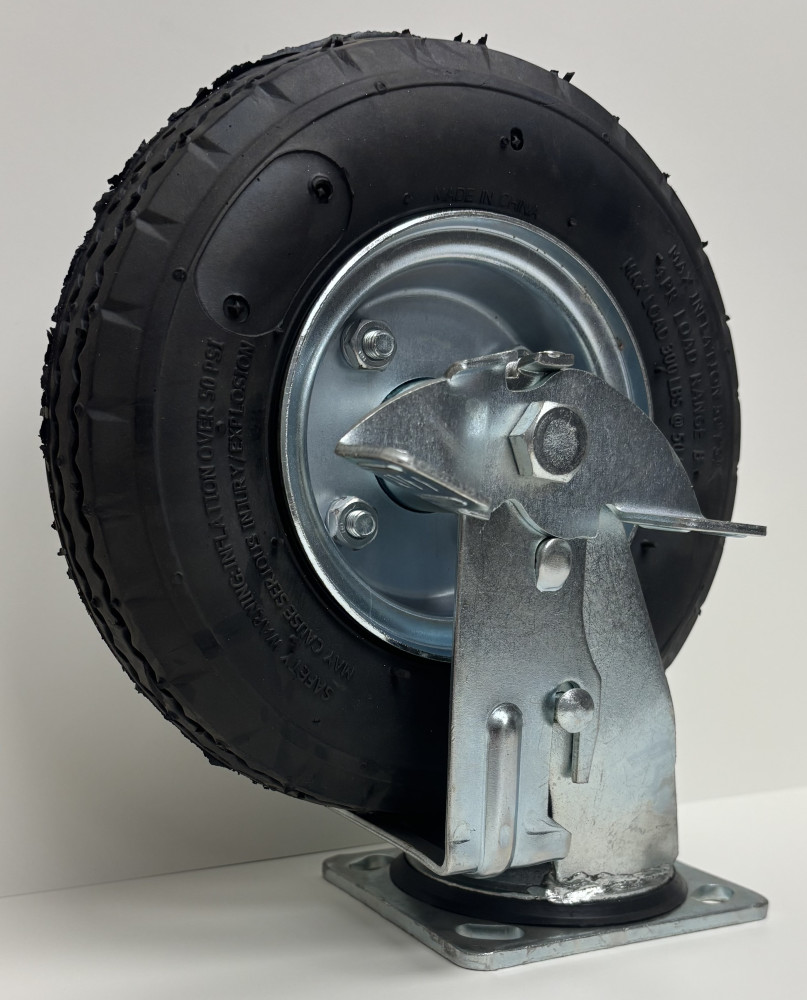

CAS-8PN-RG	CAS-8PN-SW	CAS-8PN-SW-BR

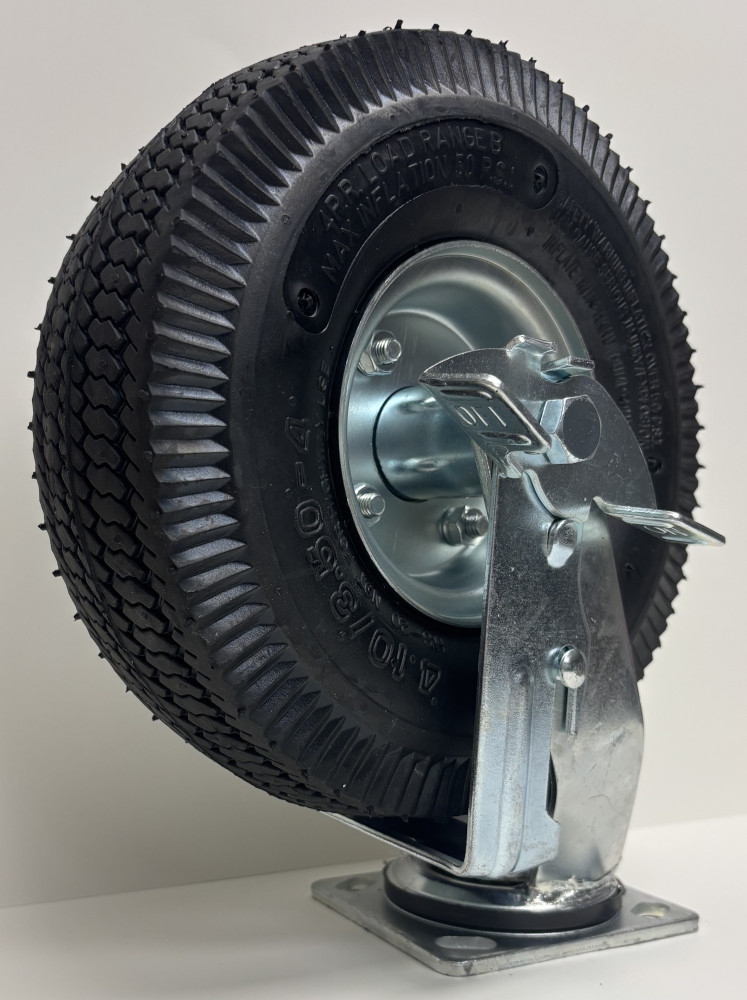

CAS-10PN-RG	CAS-10PN-SW	CAS-10PN-SW-BR
COM-CB
