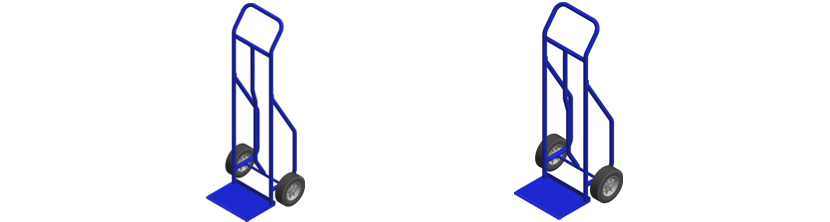

Loop Handle Handtruck

Part No.	Width (in.)	Depth (in.)	Height (in.)	Weight (lbs.)	Capacity (lbs.)	Toe Plate	Wheel Size	Wheel Type	Shipping Size (in.) L x W x H
HL-8C	20	17	51	33	1000	14 x 8	8 x 2-1/2	Cushion Rubber	20 x 17 x 51
HL-10C	19	19	51	38	1000	14 x 8	10 x 2-1/2	Cushion Rubber	19 x 19 x 51
HL-10PN	21	19	51	33	700	14 x 8	10 x 3-1/2	Pneumatic	21 x 19 x 51
HL-FDN-8C	20	17	51	39	1000	14 x 8	8 x 2-1/2	Cushion Rubber	20 x 17 x 51
HL-FDN-10C	20	19	51	44	1000	14 x 8	10 x 2-1/2	Cushion Rubber	20 x 19 x 51
HL-FDN-10PN	21	19	51	39	700	14 x 8	10 x 3-1/2	Pneumatic	21 x 19 x 51
LL-8C	20	17	45	31	1000	14 x 8	8 x 2-1/2	Cushion Rubber	20 x 17 x 45
LL-FDN-8C	20	17	45	37	1000	14 x 8	8 x 2-1/2	Cushion Rubber	20 x 17 x 45

HL:

• High loop handle handtruck
• Available with 8" cushion rubber wheels or, 10" cushion rubber or pneumatic wheels

HL-FDN:

• High loop handle handtruck
• 24" deep fold down nose (FDN)
• Available with 8" cushion rubber wheels or, 10" cushion rubber or pneumatic wheels

LL:

• Low loop handle handtruck
• Available with 8" cushion rubber wheels

LL-FDN:

• Low loop handle handtruck
• 24" deep fold down nose (FDN)
• Available with 8" cushion rubber wheels

Details:

• Loop handle handtruck
• Straight back design
• 1" x 14 ga. tube construction
• 14" wide x 8" deep toe plate
• Steel stair glides
• 1000 lbs frame capacity
• Durable blue powder coat finish
• Set up charge applies to orders less than 10 units

Optional Features:

• Toe plate extension - up to 15" max depth
• Wheel guards

Parts:

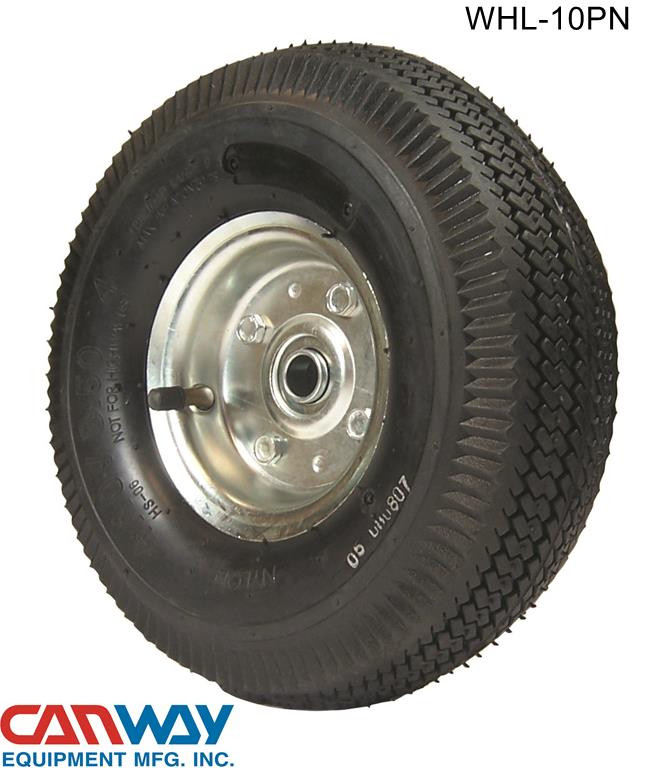

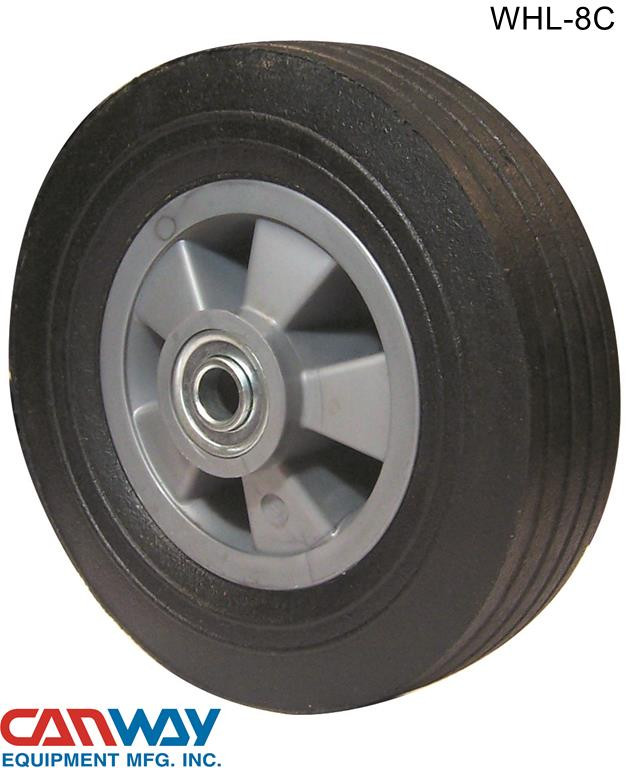

WHL-8C 5/8	WHL-10C	WHL-10PNHD

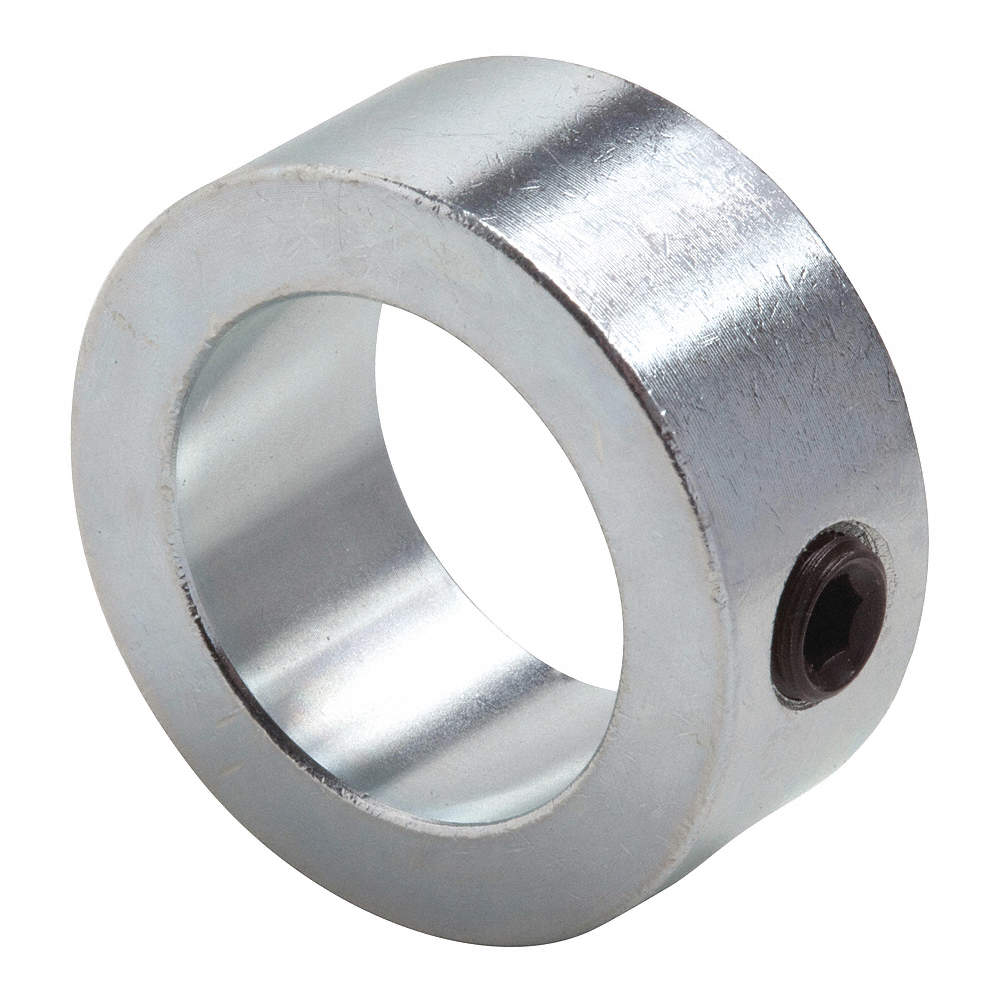

HW-SHAFT COLLAR 5/8
