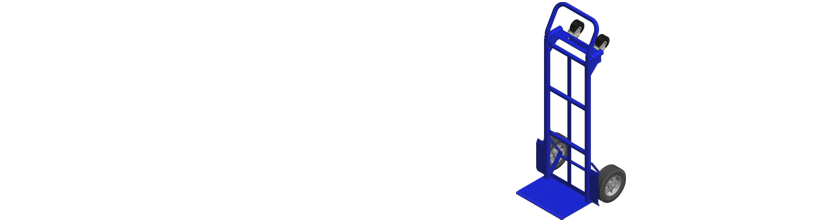

Loop Handle Convertible Handtruck

Part No.	Width (in.)	Depth (in.)	Height (in.)	Weight (lbs.)	Capacity (lbs.)	Toe Plate	Wheel Size	Wheel Type	Shipping Size (in.) L x W x H
HL3S-8C	20	17	51	50	1000 Handtruck / 1200 Platform Truck	14 x 8	8 x 2-1/2	Cushion Rubber	20 x 17 x 51
HL3S-10C	19	18	51	50	1000 Handtruck / 1200 Platform Truck	14 x 8	10 x 2-1/2	Cushion Rubber	19 x 18 x 51
HL3S-10PN	19	18	51	50	700 Handtruck / 900 Platform Truck	14 x 8	10 x 3-1/2	Pneumatic	19 x 18 x 51
LL3S-8C	20	17	45	45	1000 Handtruck / 1200 Platform Truck	14 x 8	8 x 2	Cushion Rubber	20 x 17 x 45
LL3S-10C	19	20	45	45	1000 Handtruck / 1200 Platform Truck	14 x 8	10 x 2-1/2	Cushion Rubber	19 x 20 x 45
LL3S-10PN	19	20	45	45	700 Handtruck / 900 Platform Truck	14 x 8	10 x 3-1/2	Pneumatic	19 x 20 x 45

HL3S:

• High loop handle convertible handtruck
• 13 1/2" x 42" platform truck

LL3S:

• Low loop handle convertible handtruck
• 13 1/2" x 36" platform truck

Details:

• Converts from handtruck to platform truck
• Straight back design
• 1-5/16" x 12 ga. tube construction
• Handles are 1" x 14 ga. tubing
• 14" wide x 8" deep toe plate
• Wheel guards
• Available with 8" or 10" cushion wheels or 10" pneumatic wheels
• 1000 lbs capacity for Handtruck and 1200 lbs. capacity for Platform Truck
• Durable blue powder coat finish
• Set up charge applies to orders less than 10 units

Optional Features:

• Toe plate extension - up to 15" max depth

Parts:

WHL-8C 5/8	WHL-10C	WHL-10PNHD
HW-SHAFT COLLAR 5/8
