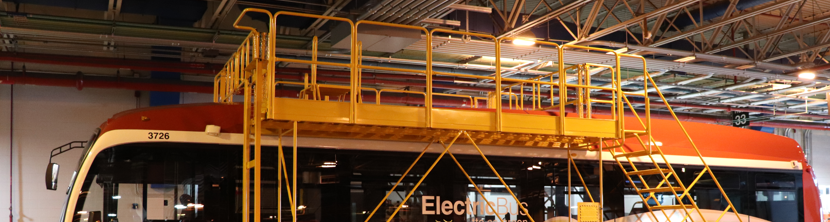

BAP Bus Access Platform

Details:

• Provides safe, enclosed work area for roof-top access and maintenance
• Customizable height, length and platform depths
• Lockable swing gates
• Platform includes heavy-duty phenolic swivel casters c/w foot brakes and 24” adjustable outriggers for optimal stability
• Heavy duty 300 lb. capacity cargo shelf
• Integral shelf column mounted vertically on back of ladder stand, c/w extended reinforced chassis
• 50⁰ safety angle ladder allows user to face forward while descending
• 42” high handrail
• 1" x 16 ga. round tube construction
• Heavy duty all-welded construction
• Steps are 9-1/2" deep, non-slip, raised, perforated, dimpled tread pattern
• Durable yellow powder coat finish

Certification

• Complies with mobile ladder standards ANSI 14.7 and OSHA 1910.29
• Complies with applicable safety standards as outlined in Ontario Occupational Health and Safety Act, Regulation 851
• Tested and approved by an Ontario Professional Engineer covering Ontario, Canada and United States of America
• Maximum rated load: 800 lbs (one person only)

Optional Features

• Electric shelf lift for battery maintenance and replacement
• 12-volt low maintenance dry cell battery c/w onboard charger system
• Upgraded heavy duty WARN 1200 Series industrial winch
• Industrial contact limit switches at top and bottom position for additional safety
• Requires standard wall outlet for battery charger (not included)
• Power system only requires battery terminal cables to be connected at time of assembly

• Spring Loaded Safety Gates at top of ladders
• Bridge Ladder/Overhead Beam with chain fall hoist
• Rubber Bumper Strip

Installation

• Factory trained technicians assemble and install the platforms on site
• Training is provided at the end of the installation for the end users
• All ladders are clearly labelled with safety instructions and warning plates

Parts:

CAS-8PH-SW-TLB
