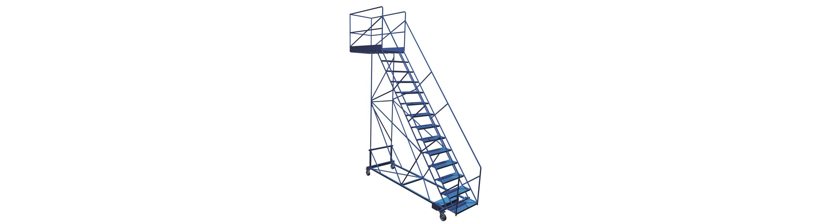

Safety Angle Cantilever Ladders – (CL)

19" Overhang

Part No.	Description	No. of Steps Including Platform	Platform Height (in.)	Step Width (in.)	Base Size (in.)	Overhang Clearance HxD (in.)	Weight (lbs)	Wheel/Caster Type & Size	Shipping Size (in.) L x W x H	Overall Dimensions (in.) L x W x H
6SH-CL-19	6 Step 50° Cantilever Mobile Ladder Stand, 19" overhang	6	60	28	39 x 81	58 x 16.5	401	6 x 2" Phenolic	116 x 39 x 79	39 x 81 x 103
7SH-CL-19	7 Step 50° Cantilever Mobile Ladder Stand, 19" overhang	7	70	28	39 x 89	68 x 16.5	390	6 x 2" Phenolic	129 x 39 x 79	39 x 89 x 113
8SH-CL-19	8 Step 50° Cantilever Mobile Ladder Stand, 19" overhang	8	80	28	39 x 98	78 x 16.5	383	6 x 2" Phenolic	142 x 39 x 79	39 x 98 x 123
9SH-CL-19	9 Step 50° Cantilever Mobile Ladder Stand, 19" overhang	9	90	28	39 x 106	88 x 16.5	394	6 x 2" Phenolic	155 x 39 x 79	39 x 106 x 133
10SH-CL-19	10 Step 50° Cantilever Mobile Ladder Stand, 19" overhang	10	100	28	39 x 114	98 x 16.5	380	6 x 2" Phenolic	168 x 39 x 79	39 x 114 x 143
11SH-CL-19	11 Step 50° Cantilever Mobile Ladder Stand, 19" overhang	11	110	28	39 x 123	108 x 16.5	385	6 x 2" Phenolic	181 x 39 x 79	39 x 123 x 153
12SH-CL-19	12 Step 50° Cantilever Mobile Ladder Stand, 19" overhang	12	120	28	39 x 131	118 x 16.5	378	6 x 2" Phenolic	194 x 39 x 79	39 x 131 x 163
13SH-CL-19	13 Step 50° Cantilever Mobile Ladder Stand, 19" overhang	13	130	28	39 x 140	128 x 16.5	372	6 x 2" Phenolic	207 x 39 x 79	39 x 140 x 173
14SH-CL-19	14 Step 50° Cantilever Mobile Ladder Stand, 19" overhang	14	140	28	39 x 148	138 x 16.5	425	6 x 2" Phenolic	220 x 39 x 79	39 x 148 x 183

28" Overhang

Part No.	Description	No. of Steps Including Platform	Platform Height (in.)	Step Width (in.)	Base Size (in.)	Overhang Clearance HxD (in.)	Weight (lbs)	Wheel/Caster Type & Size	Shipping Size (in.) L x W x H	Overall Dimensions (in.) L x W x H
6SH-CL-28	6 Step 50° Cantilever Mobile Ladder Stand, 28" overhang	6	60	28	39 x 90	58 x 26	575	6 x 2" Phenolic	125 x 39 x 79	39 x 90 x 103
7SH-CL-28	7 Step 50° Cantilever Mobile Ladder Stand, 28" overhang	7	70	28	39 x 99	68 x 26	529	6 x 2" Phenolic	138 x 39 x 79	39 x 99 x 113
8SH-CL-28	8 Step 50° Cantilever Mobile Ladder Stand, 28" overhang	8	80	28	39 x 107	78 x 26	496	6 x 2" Phenolic	151 x 39 x 79	39 x 107 x 123
9SH-CL-28	9 Step 50° Cantilever Mobile Ladder Stand, 28" overhang	9	90	28	39 x 116	88 x 26	532	6 x 2" Phenolic	164 x 39 x 79	39 x 116 x 133
10SH-CL-28	10 Step 50° Cantilever Mobile Ladder Stand, 28" overhang	10	100	28	39 x 124	98 x 26	493	6 x 2" Phenolic	177 x 39 x 79	39 x 124 x 143
11SH-CL-28	11 Step 50° Cantilever Mobile Ladder Stand, 28" overhang	11	110	28	39 x 132	108 x 26	499	6 x 2" Phenolic	190 x 39 x 79	39 x 132 x 153
12SH-CL-28	12 Step 50° Cantilever Mobile Ladder Stand, 28" overhang	12	120	28	39 x 141	118 x 26	466	6 x 2" Phenolic	203 x 39 x 79	39 x 141 x 163
13SH-CL-28	13 Step 50° Cantilever Mobile Ladder Stand, 28" overhang	13	130	28	39 x 149	128 x 26	460	6 x 2" Phenolic	216 x 39 x 79	39 x 149 x 173
14SH-CL-28	14 Step 50° Cantilever Mobile Ladder Stand, 28" overhang	14	140	28	39 x 157	138 x 26	462	6 x 2" Phenolic	229 x 39 x 79	39 x 157 x 183

38" Overhang

Part No.	Description	No. of Steps Including Platform	Platform Height (in.)	Step Width (in.)	Base Size (in.)	Overhang Clearance HxD (in.)	Weight (lbs)	Wheel/Caster Type & Size	Shipping Size (in.) L x W x H	Overall Dimensions (in.) L x W x H
6SH-CL-38	6 Step 50° Cantilever Mobile Ladder Stand, 38" overhang	6	60	28	39 x 100	58 x 35.5	728	6 x 2" Phenolic	134 x 39 x 79	39 x 100 x 103
7SH-CL-38	7 Step 50° Cantilever Mobile Ladder Stand, 38" overhang	7	70	28	39 x 108	68 x 35.5	668	6 x 2" Phenolic	147 x 39 x 79	39 x 108 x 113
8SH-CL-38	8 Step 50° Cantilever Mobile Ladder Stand, 38" overhang	8	80	28	39 x 117	78 x 35.5	635	6 x 2" Phenolic	160 x 39 x 79	39 x 117 x 123
9SH-CL-38	9 Step 50° Cantilever Mobile Ladder Stand, 38" overhang	9	90	28	39 x 125	88 x 35.5	671	6 x 2" Phenolic	173 x 39 x 79	39 x 125 x 133
10SH-CL-38	10 Step 50° Cantilever Mobile Ladder Stand, 38" overhang	10	100	28	39 x 133	98 x 35.5	532	6 x 2" Phenolic	186 x 39 x 79	39 x 133 x 143
11SH-CL-38	11 Step 50° Cantilever Mobile Ladder Stand, 38" overhang	11	110	28	39 x 142	108 x 35.5	612	6 x 2" Phenolic	199 x 39 x 79	39 x 142 x 153
12SH-CL-38	12 Step 50° Cantilever Mobile Ladder Stand, 38" overhang	12	120	28	39 x 150	118 x 35.5	580	6 x 2" Phenolic	212 x 39 x 79	39 x 150 x 163
13SH-CL-38	13 Step 50° Cantilever Mobile Ladder Stand, 38" overhang	13	130	28	39 x 159	128 x 35.5	549	6 x 2" Phenolic	225 x 39 x 79	39 x 159 x 173
14SH-CL-38	14 Step 50° Cantilever Mobile Ladder Stand, 38" overhang	14	140	28	39 x 167	138 x 35.5	550	6 x 2" Phenolic	238 x 39 x 79	39 x 167 x 183

47.5" Overhang

Part No.	Description	No. of Steps Including Platform	Platform Height (in.)	Step Width (in.)	Base Size (in.)	Overhang Clearance HxD (in.)	Weight (lbs)	Wheel/Caster Type & Size	Shipping Size (in.) L x W x H	Overall Dimensions (in.) L x W x H
6SH-CL-47	6 Step 50° Cantilever Mobile Ladder Stand, 47" overhang	6	60	28	39 x 109	58 x 45	891	6 x 2" Phenolic	143 x 39 x 79	39 x 109 x 103
7SH-CL-47	7 Step 50° Cantilever Mobile Ladder Stand, 47" overhang	7	70	28	39 x 118	68 x 45	831	6 x 2" Phenolic	156 x 39 x 79	39 x 118 x 113
8SH-CL-47	8 Step 50° Cantilever Mobile Ladder Stand, 47" overhang	8	80	28	39 x 126	78 x 45	748	6 x 2" Phenolic	169 x 39 x 79	39 x 126 x 123
9SH-CL-47	9 Step 50° Cantilever Mobile Ladder Stand, 47" overhang	9	90	28	39 x 135	88 x 45	834	6 x 2" Phenolic	182 x 39 x 79	39 x 135 x 133
10SH-CL-47	10 Step 50° Cantilever Mobile Ladder Stand, 47" overhang	10	100	28	39 x 143	98 x 45	645	6 x 2" Phenolic	195 x 39 x 79	39 x 143 x 143
11SH-CL-47	11 Step 50° Cantilever Mobile Ladder Stand, 47" overhang	11	110	28	39 x 151	108 x 45	725	6 x 2" Phenolic	208 x 39 x 79	39 x 151 x 153
12SH-CL-47	12 Step 50° Cantilever Mobile Ladder Stand, 47" overhang	12	120	28	39 x 160	118 x 45	692	6 x 2" Phenolic	221 x 39 x 79	39 x 160 x 163
13SH-CL-47	13 Step 50° Cantilever Mobile Ladder Stand, 47" overhang	13	130	28	39 x 168	128 x 45	637	6 x 2" Phenolic	234 x 39 x 79	39 x 168 x 173
14SH-CL-47	14 Step 50° Cantilever Mobile Ladder Stand, 47" overhang	14	140	28	39 x 176	138 x 45	638	6 x 2" Phenolic	247 x 39 x 79	39 x 176 x 183

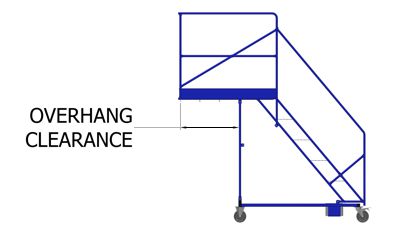

Cantilever design allows access to hard-to-reach areas:

Details:

• Cantilever design allows access to hard-to-reach areas
• 50O safety angle ladder allows user to face forward while descending
• 42” high handrail
• 1" x 16 ga. round tube construction
• Heavy duty all-welded construction
• Total Platform depth =19" plus overhang
• Steps are 9-1/2" deep, non-slip, raised, perforated, dimpled tread pattern
• Ships knocked down
• Durable blue powder coat finish

Certification

• Complies with mobile ladder standards ANSI 14.7 and OSHA 1910.29
• Complies with applicable safety standards as outlined in Ontario Occupational Health and Safety Act, Regulation 851
• Tested and approved by an Ontario Professional Engineer covering Ontario, Canada and United States of America
• Maximum rated load: 400 lbs (one person only)

Optional Features:

• Diamond Channel Grating Treads
• Front walk-through
• Tool Tray
• Stainless Steel
• Vertical Pickets

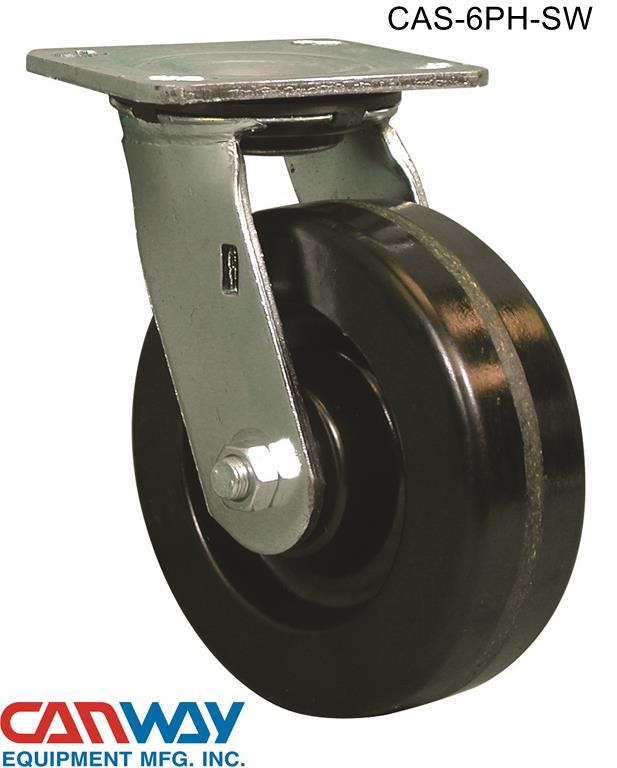

Parts:

CAS-6PH-SW-MTLB	CAS-6PH-RG
