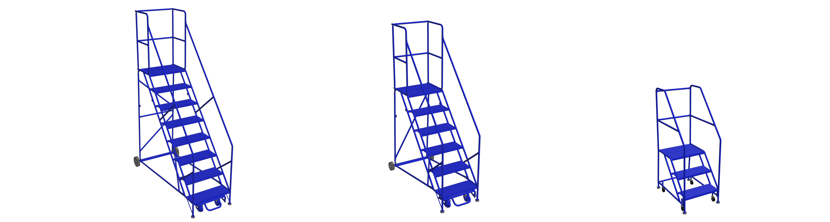

SH Mobile Ladder Stand – With Handrails

Part No.	Description	No. of Steps Including Platform	Platform Height (in.)	Step Width (in.)	Base Size (in.)	Weight (lbs)	Wheel/Caster Type & Size	Shipping Size (in.) L x W x H
2SH	2 Step 50° Safety Angle Mobile Ladder Stand	2	20	24	28 x 32	50	3" Spring loaded, non-marking	32 x 28 x 62
3SH	3 Step 50° Safety Angle Mobile Ladder Stand	3	30	24	28 x 41	65	3" Spring loaded, non-marking	41 x 28 x 72
4SH	4 Step 50° Safety Angle Mobile Ladder Stand	4	40	24	34 x 54	105	6" Polyolefin 5" Rubber Swivel	54 x 34 x 82
5SH	5 Step 50° Safety Angle Mobile Ladder Stand	5	50	24	34 x 63	120	6" Polyolefin 5" Rubber Swivel	63 x 34 x 92
6SH	6 Step 50° Safety Angle Mobile Ladder Stand	6	60	24	34 x 71	135	6" Polyolefin 5" Rubber Swivel	116 x 34 x 47
7SH	7 Step 50° Safety Angle Mobile Ladder Stand	7	70	24	34 x 79	145	6" Polyolefin 5" Rubber Swivel	129 x 34 x 47
8SH	8 Step 50° Safety Angle Mobile Ladder Stand	8	80	28	38 x 89	175	8" Polyolefin 5" Rubber Swivel	142 x 38 x 47
9SH	9 Step 50° Safety Angle Mobile Ladder Stand	9	90	28	38 x 97	205	8" Polyolefin 5" Rubber Swivel	155 x 38 x 47
10SH	10 Step 50° Safety Angle Mobile Ladder Stand	10	100	28	38 x 105	230	8" Polyolefin 5" Rubber Swivel	168 x 38 x 47
11SH	11 Step 50° Safety Angle Mobile Ladder Stand	11	110	28	38 x 114	250	8" Polyolefin 5" Rubber Swivel	181 x 38 x 47
12SH	12 Step 50° Safety Angle Mobile Ladder Stand	12	120	28	38 x 122	270	8" Polyolefin 5" Rubber Swivel	195 x 38 x 47
13SH	13 Step 50° Safety Angle Mobile Ladder Stand	13	130	28	38 x 131	290	8" Polyolefin 5" Rubber Swivel	208 x 38 x 47
14SH	14 Step 50° Safety Angle Mobile Ladder Stand	14	140	28	38 x 136	315	8" Polyolefin 5" Rubber Swivel	221 x 38 x 47
15SH	15 Step 50° Safety Angle Mobile Ladder Stand	15	150	28	44 x 144	340	8" Polyolefin 5" Rubber Swivel	234 x 38 x 47
16SH	16 Step 50° Safety Angle Mobile Ladder Stand	16	160	28	46 x 153	365	8" Polyolefin 5" Rubber Swivel	247 x 46 x 47

Details

• 50° safety angle ladder allows user to face forward while descending
• 42” high handrail
• 1" x 16 ga. round tube construction
• Heavy duty all-welded construction
• 19" platform depth
• Steps are 9-1/2" deep, non-slip, raised, perforated, dimpled tread pattern
• Positive floor locking trip step mechanism on 4H and up
• Kickplates standard on 12 step and up
• 2SH – 5SH ship fully assembled; 6SH – 16SH ship knocked down
• Durable blue powder coat finish

Certification

• Complies with mobile ladder standards ANSI 14.7 and OSHA 1910.29
• Complies with applicable safety standards as outlined in Ontario Occupational Health and Safety Act, Regulation 851
• Tested and approved by an Ontario Professional Engineer covering Ontario, Canada and United States of America
• Maximum rated load: 400 lbs (one person only)

Optional Features:

• Diamond Channel Grating Treads
• Front or Side Walk-through (comes with safety chains or gate)
• Fold-down handrail
• Extended Platform
• Tool Tray
• Stainless Steel
• Vertical Pickets
• Gates
• Inboard Axle
• Kickplates below 12 Step

Parts:

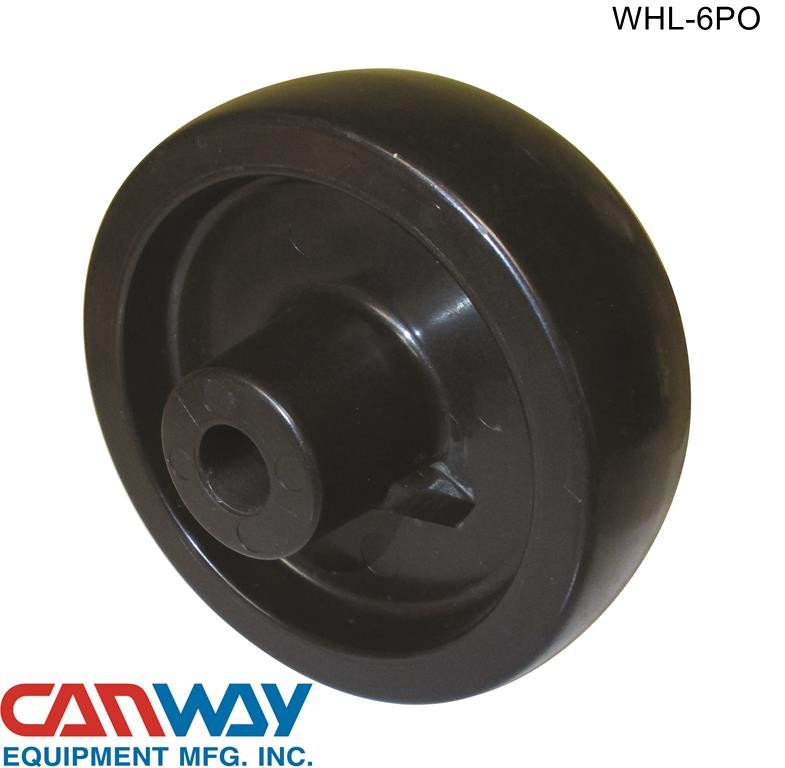

CAS-3TPR-SET (2SH - 3SH ladders)	CAS-5RSX-TS (4SH - 16SH)	WHL-6PO (4SH - 7SH ladders)

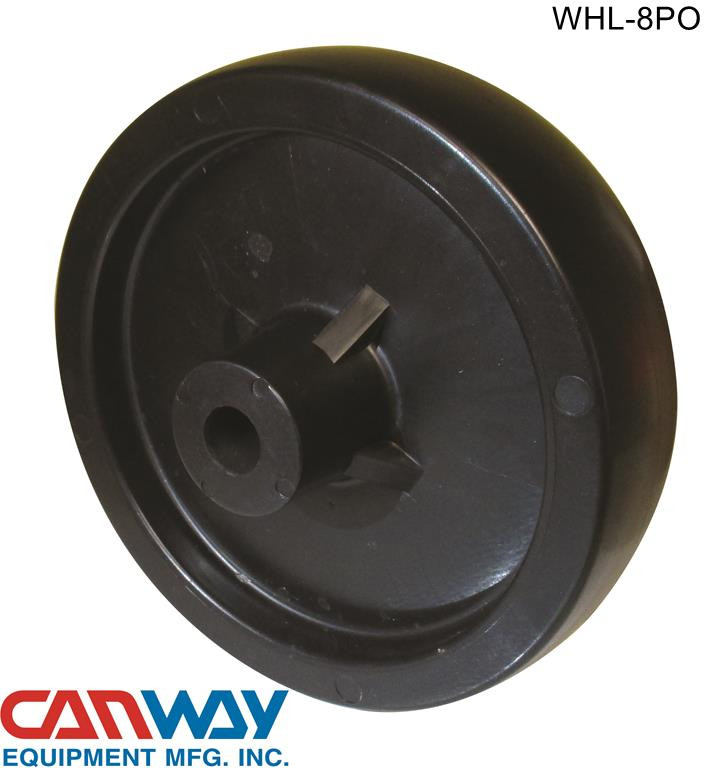

WHL-8PO (8SH - 16SH ladders)	COM-RP-2534 (SH ladders)
