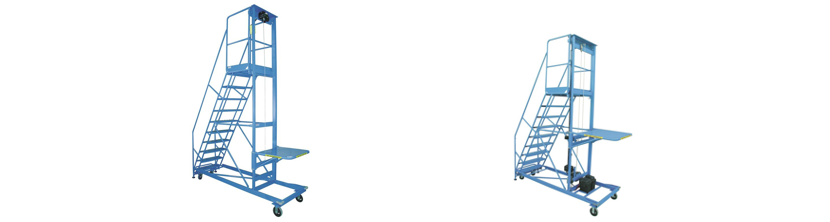

Shelf Lift Ladders – Electric and Manual

ESL - Electric Shelf Lift Mobile Ladder Stand

Part No.	Description	No. of Steps Including Platform	Platform Height (in.)	Step Width (in.)	Base Size (in.)	Weight (lbs)	Wheel/Caster Type & Size	Shipping Size (in.) L x W x H
7H-ESL	7 Step 60° Electric Shelf Lift Mobile Ladder Stand	7	63	28	36 x 87	455	6"" Mold on rubber 5" Rubber Swivel	113 x 36 x 61
8H-ESL	8 Step 60° Electric Shelf Lift Mobile Ladder Stand	8	72	28	36 x 92	465	6" Mold on rubber 5" Rubber Swivel	127 x 36 x 61
9H-ESL	9 Step 60° Electric Shelf Lift Mobile Ladder Stand	9	81	28	36 x 97	485	6" Mold on rubber 5" Rubber Swivel	137 x 36 x 61
10H-ESL	10 Step 60° Angle Electric Shelf Lift Mobile Ladder Stand	10	90	28	36 x 102	515	6" Mold on rubber 5" Rubber Swivel	148 x 36 x 61
11H-ESL	11 Step 60° Electric Shelf Lift Mobile Ladder Stand	11	99	28	36 x 107	535	6" Mold on rubber 5" Rubber Swivel	158 x 36 x 61
12H-ESL	12 Step 60° Electric Shelf Lift Mobile Ladder Stand	12	108	28	36 x 114	555	6" Mold on rubber 5" Rubber Swivel	169 x 36 x 61

MSL - Manual Shelf Lift Mobile Ladder Stands

Part No.	Description	No. of Steps Including Platform	Platform Height (in.)	Step Width (in.)	Base Size (in.)	Weight (lbs)	Wheel/Caster Type & Size	Shipping Size (in.) L x W x H
7H-MSL	7 Step 60° Manual Shelf Lift Mobile Ladder Stand	7	63	28	36 x 87	355	6" Mold on rubber 5" Rubber Swivel	113 x 36 x 61
8H-MSL	8 Step 60° Manual Shelf Lift Mobile Ladder Stand	8	72	28	36 x 92	365	6" Mold on rubber 5" Rubber Swivel	127 x 36 x 61
9H-MSL	9 Step 60° Manual Shelf Lift Mobile Ladder Stand	9	81	28	36 x 97	385	6" Mold on rubber 5" Rubber Swivel	137 x 36 x 61
10H-MSL	10 Step 60° Manual Shelf Lift Mobile Ladder Stand	10	90	28	36 x 102	415	6" Mold on rubber 5" Rubber Swivel	148 x 36 x 61
11H-MSL	11 Step 60° Manual Shelf Lift Mobile Ladder Stand	11	99	28	36 x 107	435	6" Mold on rubber 5" Rubber Swivel	158 x 36 x 61
12H-MSL	12 Step 60° Manual Shelf Lift Mobile Ladder Stand	12	108	28	36 x 114	455	6" Mold on rubber 5" Rubber Swivel	169 x 36 x 61

Details: Electric and Manual Versions

• Heavy duty 300 lb. capacity cargo shelf, 30” X 30”
• Integral shelf column mounted vertically on back of ladder stand, c/w extended reinforced chassis
• Standard 60° climbing angle
• 42” high handrail
• Steel tube construction
• Heavy duty all-welded construction
• 22 ½” platform depth
• Steps are 7-1/2" deep, non-slip, raised, perforated, dimpled tread pattern
• Two 5” x 1 ¼” RSX rubber swivel casters and two 6” X 2” mold on rubber casters
• Positive floor locking trip step mechanism
• Durable blue powder coat finish
• Modular knock down construction for compact shipping

Certification

• Complies with mobile ladder standards ANSI 14.7 and OSHA 1910.29
• Complies with applicable safety standards as outlined in Ontario Occupational Health and Safety Act, Regulation 851
• Tested and approved by an Ontario Professional Engineer covering Ontario, Canada and United States of America
• Maximum rated load: 400 lbs (one person only)

Electric Shelf Lift

• 12-volt, low maintenance Dry Cell Battery c/w onboard charger system
• Upgraded heavy duty WARN 1200 Series industrial winch
• Industrial Contact limit switches at top and bottom position for additional safety
• Requires standard wall outlet for battery charger (not included)
• Power system requires battery terminal cables to be connected at time of assembly

Optional Features:

• Diamond Channel Grating Treads
• Front walk-through
• Stainless Steel
• Vertical Pickets

Parts:

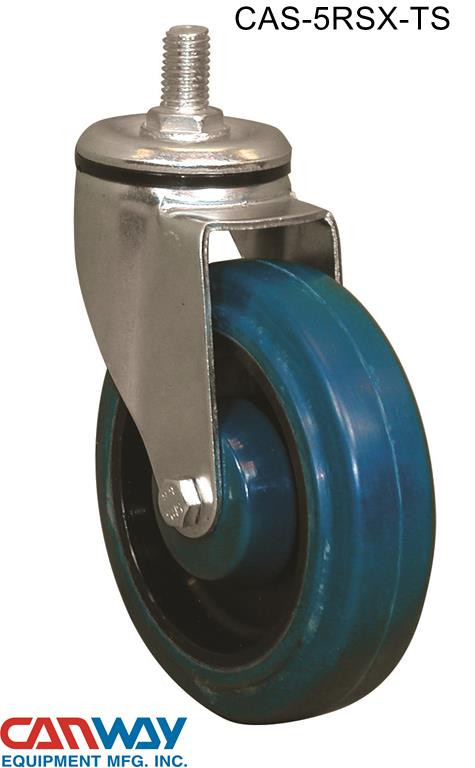

CAS-5RSX-TS	CAS-6MR-RG	COM-RP-2534
