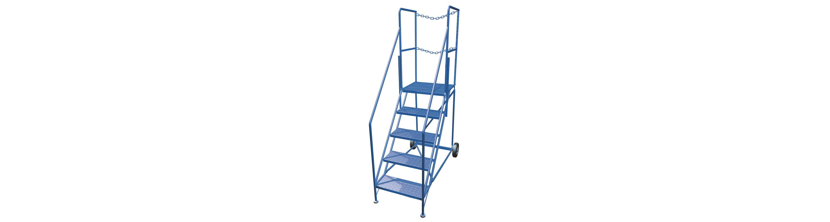

TAL – Trailer Access Ladder

Part No.	Description	No. of Steps Including Platform	Platform Height (in.)	Step Width (in.)	Base Size (in.)	Weight (lbs)	Wheel/Caster Type & Size	Shipping Size (in.) L x W x H
4SH-TAL	4 Step 50° Trailer Access Ladder	4	40	24	34 x 56	112	10" Flat Free	56 x 34 x 82
5SH-TAL	5 Step 50° Trailer Access Ladder	5	50	24	33 x 64	125	10" Flat Free	65 x 34 x 92
6SH-TAL	6 Step 50° Trailer Access Ladder	6	60	24	34 x 73	138	10" Flat Free	118 x 34 x 45
7SH-TAL	7 Step 50° Trailer Access Ladder	7	70	24	34 x 82	151	10" Flat Free	129 x 34 x 55

Details

• Provides a secure access to tractor and straight truck
• 24" x 22-1/2" platform
• 50⁰ safety angle ladder allows user to face forward while descending
• Front walk through with safety chains
• 42" high handrail
• 1" x 16 ga. round tube construction
• Heavy duty all-welded construction
• Steps are 9-1/2" deep, non-slip, raised, perforated, dimpled tread pattern
• 10" flat free wheels
• 4 – 5 step ship fully assembled; 6 – 7 step ship knocked down with minimal assembly required
• Durable blue powder coat finish

Certification

• Complies with mobile ladder standards ANSI 14.7 and OSHA 1910.29
• Complies with applicable safety standards as outlined in Ontario Occupational Health and Safety Act, Regulation 851
• Tested and approved by an Ontario Professional Engineer covering Ontario, Canada and United States of America
• Maximum rated load: 400 lbs (one person only)

Optional Features:

• Diamond Channel Grating Treads
• Gate

Parts:

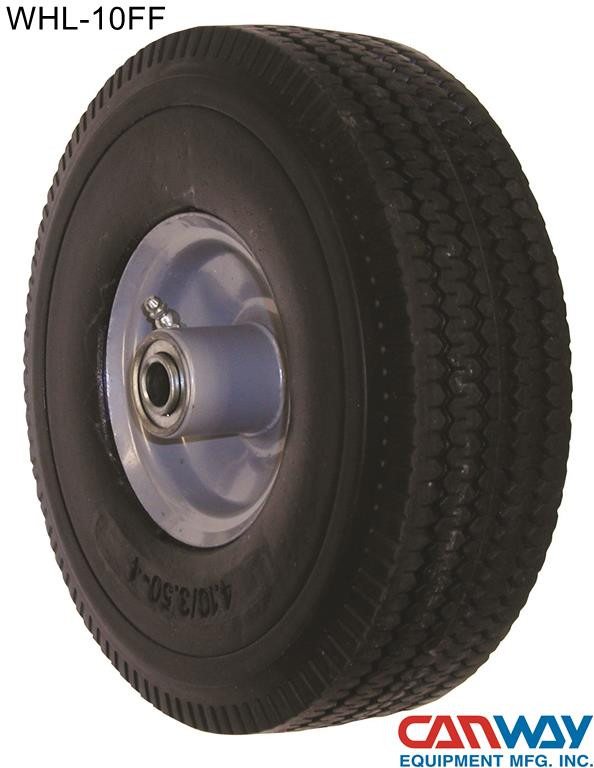

WHL-10FF-3/4BB	COM-RP-2534
