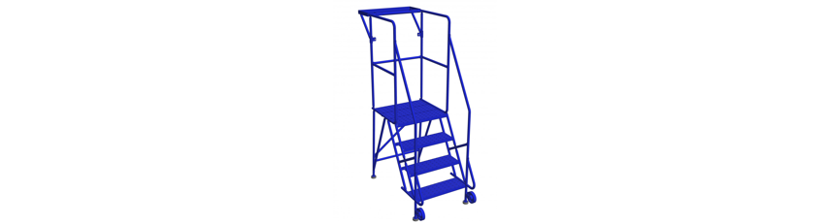

ML – Mechanic’s Ladder

Part No.	Description	No. of Steps Including Platform	Platform Height (in.)	Step Width (in.)	Base Size (in.)	Weight (lbs)	Wheel/Caster Type & Size	Shipping Size (in.) L x W x H
ML-3H	Mechanic's Ladder	3	27	24	28 x 44	85	5" Rubber	44 x 28 x 69
ML-4H	Mechanic's Ladder	4	36	24	28 x 48	95	5" Rubber	48 x 28 x 78
ML-5H	Mechanic's Ladder	5	45	24	28 x 55	105	5" Rubber	55 x 28 x 87
ML-6H	Mechanic's Ladder	6	54	24	28 x 58	115	5" Rubber	58 x 28 x 96

Details

• Tilt and roll mobility
• No bottom brace to easily clear obstacles on the floor
• Standard 60° climbing angle
• 42” high handrail
• 1" x 16 ga. round tube construction
• Heavy duty all-welded construction
• 24” wide x 22 ½” deep platform
• Steps are 7-1/2" deep, non-slip, raised, perforated, dimpled tread pattern
• 26” wide x 10” deep removable tool shelf
• Two 5” diameter rubber wheels
• Durable blue powder coat finish

Certification

• Complies with mobile ladder standards ANSI 14.7 and OSHA 1910.29
• Complies with applicable safety standards as outlined in Ontario Occupational Health and Safety Act, Regulation 851
• Tested and approved by an Ontario Professional Engineer covering Ontario, Canada and United States of America
• Maximum rated load: 400 lbs (one person only)

Optional Features:

• Diamond Channel Grating Treads
• Stainless Steel
• Vertical Pickets

Parts:

WHL-5RSX	COM-RP-2534 (SH ladders)
